Manufactured by leading OEM and OES supplier for reliable performance
Application -specific formulations for extended pads life and clearn wheels.
MULTI-layer shim for near silent braking
OE designed slots and chamfers for consistent performance
Size :OEM Standard size
Material: NAO Ceramic,Semi-Metalic
Advantages:
● Manufacture according to your requirement.
● High quality
● No abestos ,No noise, No dust
● Certificate: ISO/TS 16949:2009 ECER90
● Warranty: 30000-60000 km
● Timely delivery
● Competitive price
● Diversity products
● After-sale services
Product Details

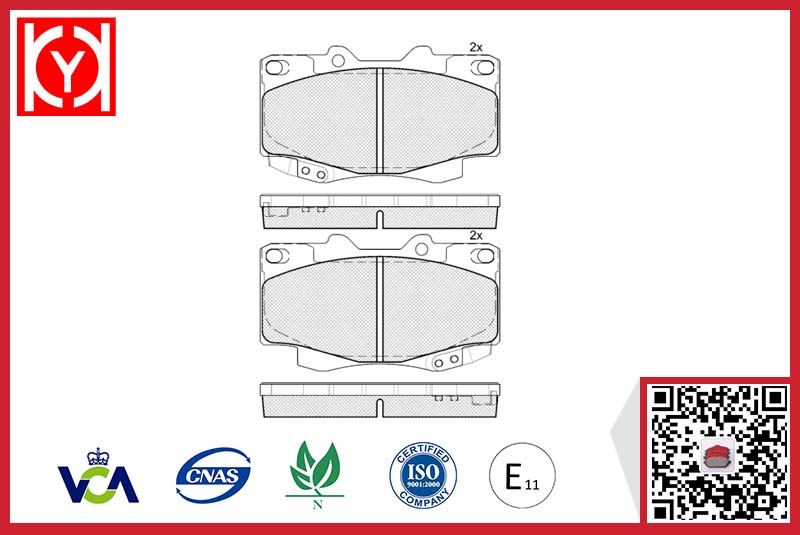

| KY81781No. of Pieces：4 |  | Brake pad setFront119.3x68.1x17 | ||||
| Brand OE Reference | Maker Cross reference | |||||
| TOYOTA04465-04030TOYOTA04465-04050TOYOTA04465-04060TOYOTA04465-04630TOYOTA04465-0J140TOYOTA04465-0K070TOYOTA04465-0K140TOYOTA04465-0K210 | ATE13.0460-5503.2ATE605503B.M.DB1323B.M.DB1739BENDIX572625BBREMBOP83069BREMBOP83151DELPHI LOCKHEEDLP2242FERODOFDB1852FMSID799-7671GIRLING6134289HELLA-PAGID8DB355020-811HELLA-PAGIDT1718MINTEXMDB1947MINTEXMDB2203NECTOFD7223AROAD HOUSE2315.22TEXTAR21680 175 0 5TEXTAR2168003TRWGDB3213TRWGDB3428WVA21679WVA21680 | |||||
| Vehicles | ||||||
| TOYOTA | |||||||
| FORTUNER / SW4 (_N5_, _N6_) Closed Off-Road Vehicle 06/2004-05/2015 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.7 (TGN61_) | 2TR-FE | 1 | 03/2009-05/2015 | 2694 | 116 | 158 | 2 |
| 2.7 (TGN61_) | 2TR-FE | 1 | 06/2004-05/2015 | 2694 | 118 | 160 | 2 |
| 2.7 4WD (TGN51_) | 2TR-FE | 1 | 08/2008-03/2015 | 2694 | 116 | 158 | 3 |
| 2.7 4WD (TGN51_) | 2TR-FE | 1 | 06/2004-05/2015 | 2694 | 118 | 160 | 3 |
| 2.7 Flexfuel | 2TR-FE | 1 | 01/2012-05/2015 | 2694 | 120 | 163 | 1 |
| 4.0 (GGN50_, GGN60_) | 1GR-FE | 1 | 07/2005-05/2015 | 3956 | 173 | 235 | 2 |
| 4.0 4WD (GGN50_, RZN215, GGN60) | 1GR-FE | 1 | 01/2005-05/2015 | 3956 | 173 | 235 | 3 |
| 2.5 D-4D 4WD (KUN50) | 2KD-FTV | 2 | 01/2009-05/2015 | 2494 | 75 | 102 | 3 |
| 2.5 D-4D 4WD (RZN215, KUN50) | 2KD-FTV | 2 | 07/2011-05/2015 | 2494 | 106 | 144 | 3 |
| 3.0 D | 1KD-FTV | 2 | 08/2009-05/2015 | 2982 | 120 | 163 | 2 |
| 3.0 D (KUN51_, KUN61_) | 1KD-FTV | 2 | 01/2005-05/2015 | 2982 | 126 | 171 | 2 |
| 3.0 D (KUN61) | 1KD-FTV | 2 | 08/2009-05/2015 | 2982 | 125 | 170 | 2 |
| 3.0 D 4WD (KUN51) | 1KD-FTV | 2 | 06/2004-05/2015 | 2982 | 120 | 163 | 3 |
| 3.0 D 4WD (KUN51_) | 1KD-FTV | 2 | 08/2009-05/2015 | 2982 | 126 | 171 | 3 |
| 3.0 TDI | 1KD-FTV | 2 | 12/2013- | 2982 | 130 | 177 | 2 |
| HiLux IV-VI / TACOMA (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) Pickup 08/1983-02/2006 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 3 | 1 | 08/2001-07/2005 | 2959 | 105 | 143 | 1 | |
| 3 | 1 | 08/2001-07/2005 | 2959 | 105 | 143 | 1 | |
| HiLux VI / SW4 (_N1_) Closed Off-Road Vehicle 01/1995-08/2005 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.7 | 3RZ-FE | 1 | 08/2001-07/2004 | 2694 | 107 | 145 | 1 |
| 3.4 | 5VZ-FE | 1 | 11/1995-07/2000 | 3378 | 136 | 185 | 1 |
| 3.4 4WD (VZN185W_) | 5VZ-FE | 1 | 11/1995-07/2004 | 3378 | 131 | 178 | 3 |
| 3.0 D | 5L | 2 | 08/2002-07/2004 | 2986 | 67 | 91 | 2 |
| HiLux VII (_N1_, _N2_) Platform/Chassis 02/2005- | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 4 | 1GR-FE | 1 | 02/2005- | 3956 | 175 | 238 | 1 |
| 4.0 A las 4 ruedas | 1GR-FE | 1 | 02/2005- | 3956 | 175 | 238 | 1 |
| 3.0 D | 1KD-FTV | 2 | 02/2005- | 2982 | 126 | 171 | 2 |
| 3.0 D 4WD (KUN26_) | 1KD-FTV | 2 | 02/2005- | 2982 | 126 | 171 | 3 |
| HiLux VII / HiLux (VIGO) (_N1_, _N2_, _N3_) Pickup 08/2004- | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.0 (KGN15_, TGN15_) | 1AZ-FSE | 1 | 08/2005-05/2015 | 1998 | 108 | 147 | 2 |
| 2.0 (TGN10_, TGN15_) | 1TR-FE | 1 | 02/2005- | 1998 | 98 | 133 | 2 |
| 2.7 (TGN16) | 2TR-FE | 1 | 08/2005-05/2015 | 2694 | 118 | 160 | 2 |
| 2.7 4WD (TGN26) | 2TR-FE | 1 | 08/2005-05/2015 | 2694 | 118 | 160 | 3 |
| 4 | 1GR-FE | 1 | 08/2005- | 3956 | 175 | 238 | 1 |
| 4 | 1GR-FE | 1 | 08/2005- | 3956 | 175 | 238 | 1 |
| 2.5 D 4WD (KUN25_) | 2KD-FTV | 2 | 08/2005-05/2015 | 2494 | 75 | 102 | 3 |
| 2.5 D-4D (KUN15_) | 2KD-FTV | 2 | 08/2005-05/2015 | 2494 | 75 | 102 | 2 |
| 2.5 D-4D (KUN15_) | 2KD-FTV | 2 | 12/2007- | 2494 | 88 | 120 | 2 |
| 2.5 D-4D 4WD | 2KD-FTV | 2 | 09/2009- | 2494 | 106 | 144 | 3 |
| 2.5 D-4D 4WD (KUN25_) | 2KD-FTV | 2 | 12/2007- | 2494 | 88 | 120 | 3 |
| 2.5 D-4D 4WD (KUN25_) | 2KD-FTV | 2 | 11/2004-12/2005 | 2494 | 94 | 128 | 3 |
| 3.0 D 4WD (KUN26_) | 1KD-FTV | 2 | 08/2005-05/2015 | 2982 | 120 | 163 | 3 |
| 3.0 D-4D 4WD | 1KD-FTV | 2 | 05/2008-12/2008 | 2982 | 145 | 197 | 3 |
| 3.0 D-4D 4WD (KUN26) | 1KD-FTV | 2 | 08/2005-05/2015 | 2982 | 126 | 171 | 3 |
| HILUX VI (_N1_) Pickup 01/1995-03/2006 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.7 (RZN154, RZN149) | 3RZ-FE | 1 | 01/1998-07/2004 | 2694 | 107 | 145 | 2 |
| 3.4 | 5VZ-FE | 1 | 08/2001-07/2005 | 3378 | 131 | 178 | 1 |
| 3.4 | 5VZ-FE | 1 | 08/2001-07/2005 | 3378 | 131 | 178 | 1 |
| 2.5 D-4D 4WD (KDN165_, KDN170_, KDN190_) | 2KD-FTV | 2 | 11/2001-07/2005 | 2494 | 75 | 102 | 3 |
| 3.0 D | 5L | 2 | 01/2002-02/2005 | 2986 | 67 | 91 | 2 |
| 3.0 D | 5L | 2 | 01/2002-07/2005 | 2986 | 67 | 91 | 2 |
| TACOMA (U.S.A.) Pickup 09/1995-12/2006 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.4 16V | 1 | 09/1995- | 2395 | 1 | |||
| 2.4 16V 4WD | 1 | 09/1995- | 2395 | 1 | |||
| 2.7 16V | 1 | 09/1995- | 2695 | 107 | 145 | 1 | |
| 3.4 24V | 1 | 09/1995- | 3395 | 1 | |||
| TACOMA () Pickup 01/1995- | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.4 16V | 1 | 01/1995- | 2395 | 1 | |||
| 2.4 16V 4WD | 1 | 01/1995- | 2395 | 1 | |||
| 2.7 16V | 1 | 01/1995- | 2695 | 1 | |||
| 2.7 16V 4WD | 1 | 01/1995- | 2695 | 1 | |||
| 3.4 16V 4WD | 1 | 01/1995- | 3395 | 1 | |||
| 3.4 24V | 1 | 01/1995- | 3395 | 1 | |||
| TACOMA (_N1_) Pickup 09/1994-08/2004 | |||||||
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
| 2.4 16V | 1 | 09/1994- | 2395 | 1 | |||
| 2.4 16V 4WD | 1 | 09/1994- | 2395 | 1 | |||
| 2.7 16V | 1 | 09/1994- | 2695 | 1 | |||
| 2.7 16V 4WD | 1 | 09/1994- | 2695 | 1 | |||
| 3.4 16V 4WD | 1 | 09/1994- | 3395 | 1 | |||
| 3.4 24V | 1 | 09/1994- | 3395 | 1 |
Do you have questions about our products?
Prdouct Name:Brake pad set KY81781 TOYOTA 04465-04030
